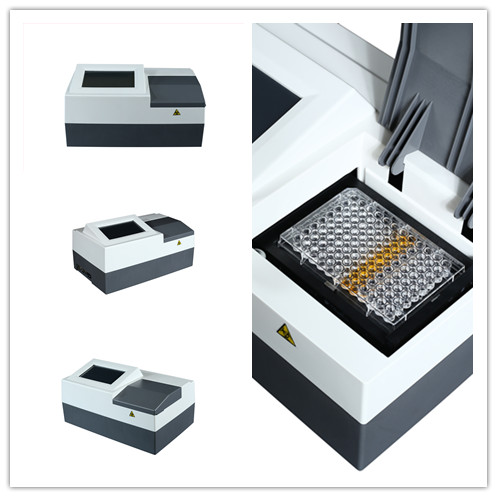

Automatic Elisa Analyzer

7 inch color LCD display, touch screen operation

Visualization of panel and visualization of panel data

Center location, accurate data, good stability and good repeatability.

Endpoint method, kinetic method, inhibition rate, single / dual wavelength measurement

Wide voltage design and global power supply.

Main Parameters

Lamp：DC12V 22W Tungsten halogen lamp

Optical path:8 channel vertical light path system

Wavelength range：400-1000nm(Selection:340-1100nm)

Filter:Default configuration 405、450、492、630nm, Can be installed up to 10 filters.

Reading range:0-4.000Abs

Linear range:0-3.000Abs

Resolution: 0.001Abs

Accuracy:≤±0.01Abs

Stability:≤±0.003Abs

Repeatability:≤0.3%

Vibration plate :Three kinds of linear vibration plate function, Adjustable 0-255 seconds

Display: 7 inch color LCD screen, display the entire board information, touch screen operation.

Software: Professional software, Can store 200 groups  program, 100000 sample results,More than10 kinds of curve fitting equation.

Power input:DC12v 5A

Weight:6Kg

Size:400mm(L)*260mm(W)*200mm(H)
